Nízky nakladač

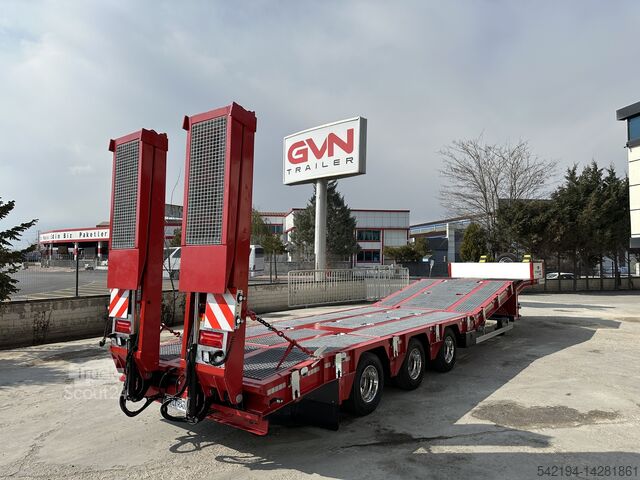

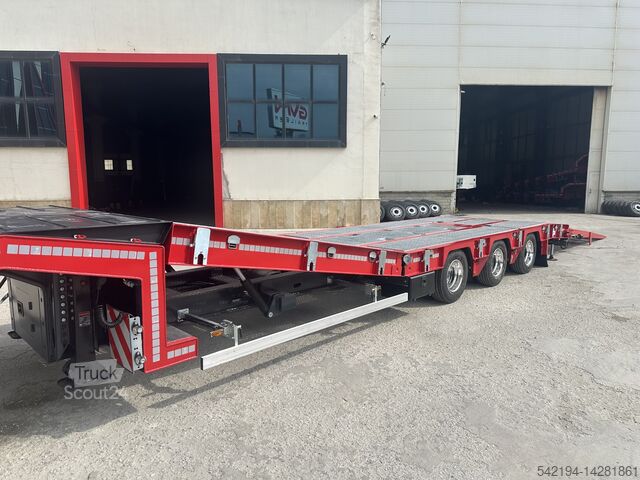

GVN Trailer 3 Axle Tramex Platform Lowbed

Stav: nový, Rok výroby: 2026, Máme všetky európske dokumenty! Dodávku prívesov vieme zabezpečiť na podmienkach FOB, EXW, CPT, CFR alebo CIF. V prípade záujmu nás prosím kontaktujte; Hnsdpfeqx Nd Rjx Anfjt Pre európske krajiny; Pre africké krajiny;

Stav: nový, celková hmotnosť: 58 000 kg, Rok výroby: 2026, Low-bed Semi-Trailer MAX100 4 A 8.60 U Technical Data Maximum speed: 80 km/h Gross weight: 60,800 kg Fifth wheel load: 18,000 kg Axle load: 42,800 kg Unladen weight: Payload: Gooseneck length: 3,850 mm Loaded coupling height: 1,250 mm Loading area length: 8,600 mm Extendable by: 5,400 mm Axle spacing: 1,360 mm Rear steering radius: 2,300 mm Loading height at max. load: 860 mm Overall width: 2,540 mm Suspension travel: -55 / +145 mm Technical Description Gooseneck: With front corners chamfered at 45°, rear taper approx. 760 mm x 10° 3 pairs of lashing rings (LC 5,000 daN) 30 mm strong hardwood flooring Extendable loading platform Rear taper approx. 1,000 mm x 8° 5 pairs of fold-out lashing rings to the outside (LC 5,000 daN) 3 pairs of fold-out lashing rings to the outside (LC 10,000 daN) 1 pair of horizontal lashing rings at the front of the loading area (LC 10,000) Approx. 48 mm thick hardwood flooring, over the axles checker plate Ramps: Two-piece steel ramps One pair galvanized two-piece steel ramps approx. 2,750 + 1,400 mm x 800 mm with approx. 48 mm thick hardwood covering Ramp with hydraulically folding ramp sections, hydraulic lifting device, and hydraulically movable Maximum load per pair 40,000 kg Tyres: 235/75 R 17.5 Brake system in accordance with EU regulations with EBS-E (4S3M), without connection lines to the tractor unit Paintwork: Premium, durable corrosion protection of the standard shot-blasted welded frame ensured by two-component zinc-rich primer High-quality two-component (2K) topcoat, single color, in RAL color of your choice Rear section metalized and painted in RAL 9010 (Pure White) Landing Legs: JOST mechanical landing legs with 2-speed gearbox, rated for 24t lifting capacity (50t test load) Steel Construction: High-strength fine grain steel construction. Steel grades: High-strength fine grain steel S355J2+N/S355MC (yield strength 355MPa) S690QL/S700MC (yield strength 690MPa) Electrical system in accordance with EU regulations, LED lighting 24 Volt ASPÖCK-NORDIK (ASS3) ASPÖCK-UNIBOX at the front terminal strip with 24N, 24S & 15-pin sockets, ISO compliant 24N IS0-1185 24S IS0-3731 15 pin IS0-12098 Included Accessories: One galvanized steel front wall approx. 400 mm high 2" king pin Hnodsg Sk T Dopfx Anfjt 4 wheel chocks with holder at the front wall Bracket for a revolving beacon at the rear of the trailer SAF axles, two rigid, one trailing-steered, air suspension, drum brakes, with lift/lower function Trailing steering axle with electro-magnetic reverse lockout activated via reverse gear or manually Axle tools Mount at the rear of the gooseneck for ALU approach ramps Galvanized folding supports under the loading platform’s taper Mechanical locking of the loading platform One spare wheel with holder in front of the front wall Yellow reflective tape according to EU regulations on the sides, extension, and rear of the trailer Yellow-red air couplings on galvanized terminal strip at the front At the gooseneck and rear plate, left and right, each a bracket for warning plates including socket One mudflap at the rear of the trailer Manual and documentation Plug-in ALU side walls and end wall approx. 2,440 x 400 mm (L x H) for the gooseneck Rear removable galvanized stakes Superstructure length approx. 2,560 mm, +/- 46 kg 3 pairs of WADER container pockets in the loading platform for one 20', 30’, or 40’ container (± 30 kg) 6 pairs of stake pockets for plug-in stakes

Stav: pripravené na použitie (použité), Rok výroby: 2006, Funkcionalita: plne funkčný, kapacita nádrže: 31 000 l, celková dĺžka: 7 820 mm, celková šírka: 2 550 mm, celková výška: 2 670 mm, celková hmotnosť: 36 000 kg, materiál steny: nehrdzavejúca oceľ, Počet komôr: 1, prevádzková teplota: 130 °C, prevádzkový tlak: 3 lišta, tlak (max.): 4 lišta, pretlak (max.): 6 lišta, pohotovostná hmotnosť: 4 650 kg, tlak: 4 lišta, teplota: 130 °C, Výbava: Dostupný typový štítok, Nádržový kontajner z nehrdzavejúcej ocele V4A s jedným kupolovitým vekom s priemerom 50 cm a druhým kupolovitým vekom, tiež s priemerom 50 cm (alebo 30 cm). Spodný vývod 3 palce BSP, čo zodpovedá 7,5 cm. Izolovaný (10 cm polyuretánu), vyčistený (možnosť vyhrievania). Nachádza sa v Rotterdame. Možnosť prenájmu. Fotografie sú archívne, originály radi poskytneme na vyžiadanie. Všetky údaje sú bez záruky, vyhradzujeme si právo na zmeny a prípadný predaj počas platnosti ponuky. Hnedpfx Ansufgkvefot

Stav: použitý, najazdené kilometre: 522 574 km, výkon: 419 kW (569,68 k), prvá registrácia: 06/2017, typ paliva: nafta, celková hmotnosť: 18 000 kg, konfigurácia náprav: 4x2, brzdy: intarder, kabína vodiča: spacia kabína, typ prevodu: automatický, emisná trieda: Euro 6, zavesenie: oceľ-vzduch, Výbava: ABS, AdBlue, Bluetooth, EBS (Elektronický brzdový systém), Tachograf, USB port, asistent udržiavania jazdného pruhu, centrálne zamykanie, chladnička, elektricky nastaviteľné zrkadlo, elektrické ovládanie okien, hmlové svetlá, hydraulika, klimatizácia, navigačný systém, nezávislé kúrenie, nízka hlučnosť, palubný počítač, posilňovač riadenia, retardér, sadzový filter, sledovanie tlaku v pneumatikách, spojler, stacionárna klimatizácia, start-stop systém, systém kontroly trakcie, tempomat, uzávierka diferenciálu, vozidlo pre nefajčiarov, vyhrievanie sedadla, úplná servisná história, ďalšie svetlomety, IVECO STRALIS *570* HI-WAY --- AS440S57T/P ===== - LUXURY LEATHER SEATS – INTARDER – HYDRAULICS – PARKING AIR CONDITIONING - SPOILER PACKAGE with SIDE SKIRTS – ALCOA ALUMINIUM RIMS Special equipment: - LEATHER SEATS with VENTILATION, HEATED SEATS, and LUMBAR SUPPORT - Air-suspended driver and passenger seats - HYDRAULICS, dual circuit / tipping and moving floor hydraulics Hydraulic connections in front of and behind the fifth wheel - LED ROOF SPOTLIGHTS - XENON Headlights - Headlamp cleaning system - LED daytime running lights - PARKING AIR CONDITIONING - AUTOMATIC CLIMATE CONTROL - INTARDER / RETARDER - SPOILER PACKAGE with SIDE SKIRTS - ALCOA ALUMINIUM RIMS - SUN VISOR - Multifunction LEATHER STEERING WHEEL - Radio-NAVIGATION / DISPLAY and TOUCHSCREEN - Two original Iveco REFRIGERATORS *This vehicle had a maintenance contract with IVECO* Assistance systems: - Emergency braking assistant - Brake assistant - Adaptive cruise control - Lane keeping assistant - Electronic Stability Program (ESP) - Anti-slip regulation (ASR) - Anti-lock braking system (ABS) Additional features: - Euro 6 - Automatic transmission - Auxiliary heater - On-board computer - Cruise control - Central locking with remote control - Bed/sleeper bunk - Additional spotlights / wide-beam headlights Hsdpfx Anjkfqqmsfjnt - Differential lock - Aluminium fuel tank - Front axle tyres: 385/65R22.5 - Rear axle tyres: 315/80R22.5 - etc.... For more information: Mobile no.: ..::: Please contact us before your visit, as the office is not always staffed :::.. Would you like to visit us? We offer a free pick-up service from the train station in 4020 Linz. We handle all customs matters for you. What about your used vehicle? ...if we reach an agreement, we are happy to take it in part exchange. For export outside the EU, statutory VAT must be deposited as a security. This offer is non-binding and without obligation. Subject to error and prior sale.

Stav: veľmi dobrý (použitý), konfigurácia náprav: 3 nápravy, prvá registrácia: 07/2016, zavesenie: vzduch, Rok výroby: 2016, Výbava: zdvíhacie čelo, Odpruženie: vzduchové odpruženie Zadná náprava 1: riadená Zadná náprava 2: riadená Hnedpfx Anevvwzrsfjt Zadná náprava 3: riadená Celková hmotnosť: 48 000 kg Technický stav: veľmi dobrý Vizuálny stav: veľmi dobrý Cena: na vyžiadanie Pre viac informácií kontaktujte Davida F. Middelmana.

Stav: nový, Rok výroby: 2026, Výbava: ABS, 5-osový nízkoplošinový náves Hodpfx Anjrlm Txsfjnt Pre viac informácií nás prosím kontaktujte.

Stav: nový, maximálna hmotnosť nákladu: 31 500 kg, celková hmotnosť: 42 000 kg, konfigurácia náprav: 3 nápravy, Rok výroby: 2026, Výbava: ABS, Wiese 3-axle semi-trailer with lift table and folding rear section. Perfect for transporting forklifts and/or work platforms. Technical specifications: - 3 x 10 t axles - Lift axle - Steering axle with Smart Steering (steers both forward and backward) - Outer beam chassis with inclined frame - Neck construction rated for 18 t, suitable for 2- and 3-axle tractor units - Hydraulic lift table adjustable to 3 positions - Rear in folding tail design with hydraulic extensions, usable as drive-on ramps, bridging ramp, or loading platform (overall length reduced with rear upright) - Remote control for ramps and lift table - Front wall - Grating floor - Numerous lashing points - SmartBoard - Central lubrication system - Steel construction, shot-blasted, hot-dip galvanized and painted Various optional extras available: For example: - Winch Hnjdpevw Hmtjfx Anfjt - Toolbox on fifth wheel step - Alloy wheels Further information on request.

Stav: nový, pohotovostná hmotnosť: 11 000 kg, celková hmotnosť: 68 000 kg, konfigurácia náprav: > 3 nápravy, zavesenie: vzduch, Rok výroby: 2025, Výbava: ABS, GVN Príves s 4 nápravami, štandardný nízkozdvižný náves Pre viac informácií nás prosím kontaktujte. Hnedoqxbapspfx Anfjt

Stav: nový, celková hmotnosť: 49 500 kg, konfigurácia náprav: 3 nápravy, Rok výroby: 2026, 3-axle MULTIMAX PLUS low-bed semi-trailer, air-suspended and with hydraulically forced-steered axles. Technical data MultiPLUS-Z-3L-UB-12AT-9.60-17.5-2.54-GR Speed: 80 km/h (legal) Gross vehicle weight: 49,500 kg (depending on fifth-wheel load) Fifth-wheel load: 18,000 kg Axle load: 31,500 kg Gooseneck length approx.: 3,900 mm Gooseneck width approx.: 2,480 mm Turning radius king pin to rear approx.: 2,100 mm Fifth wheel height loaded approx.: 1,205 mm Loading platform length approx.: 9,600 mm Extendable by approx.: ? Platform width approx.: 2,540 mm Loading height (max. loaded) approx.: 890 mm Suspension travel approx.: -55/+145 mm Axle spacing: 1,360 mm Gross weight dependent on fifth-wheel load: Yes Special permit required if national legislation is exceeded. Technical description Gooseneck: Gooseneck in SNT design for optimized platform length, approx. 3,900 mm in length, rear with bevel approx. 1,000 mm x 6°. Technical fifth-wheel load: 18,000 kg. For tractor units: 4 x 2 and 6 x 2. Platform: Platform approx. 9,600 mm long with rear ramped bevel approx. 900 mm x 6°. Platform section after gooseneck is hydraulically liftable and lowerable, length approx. 3,000 mm, loadable up to approx. 9,000 kg. Ramps: DR-10-900-4920-GR-HV-AXS One pair of two-part AXS steel ramps, approx. 4,920 mm long and approx. 900 mm wide. Open grid surface. Hydraulic folding ramp ends. Each ramp hydraulically adjustable outwards by approx. 235 mm and inwards by approx. 365 mm. Max load and gradient as per data sheet: C470319 Maximum incline with lowered platform: 9° Axles and suspension: BPW axles and suspension, all axles hydro-mechanically forced-steered. Technical axle load: 12,000 kg Air suspension with lift and lower valve. Axle tools. Tyres: 235/75 R 17.5 3PMSF twin tyres. Brand at our discretion. Load index 143/141J (144/144F). Brake system: Braking system by WABCO EBS-E, in accordance with EU regulations. No connection cable to tractor unit. Lighting: 24V lighting system “ASPÖCK-NORDIK full LED” compliant with EU regulations. (ASS 3) Metallisation: Complete HRM metallization (High Resistance Metallisation) Entire steel construction shot-blasted, then finished with ZINACOR 850 (Zinc 85% - Alu 15%). Hnodpoizu Ntsfx Anfjt Paint finish (6-stage final treatment): Complete steel structure shot-blasted after welding. 1 layer zinc-based primer, 1 adhesion primer layer. Final finish with 2 layers of 2-component paint (acrylic), single color in RAL color of choice, then cavity sealing with special wax. Rims in silver. Multi-color and special paint at extra cost. Steel construction: Made from high-strength fine-grained steel. Steel grades: S355J2+N/S355MC (yield strength 355MPa), S690QL/S700MC (yield strength 690MPa). Welders certified DIN-EN 287-1. MAG welding as per EN ISO 4063. Shielding gas M21 as per EN ISO 14175 Front wall: Steel, removable, approx. 400 mm high. Supply line junction box to tractor unit, fitted at the level of the outer frame profile. ASPÖCK-UNIBOX at front junction rail with sockets: 24N, 24S & 15-pin. 24N connection as per ISO-1185 24S connection as per ISO-3731 15-pin as per ISO-12098 If your pin configuration deviates from ISO standards, please inform us. “Anderson” socket on front junction box (Rema 78051-00 and Amp. 150 V.) Cable for supply of the electro-hydraulic pump unit and/or electric winch (35 mm²,

Stav: nový, pohotovostná hmotnosť: 10 700 kg, maximálna hmotnosť nákladu: 38 800 kg, celková hmotnosť: 49 500 kg, konfigurácia náprav: 3 nápravy, dĺžka ložného priestoru: 9 300 mm, šírka ložného priestoru: 2 540 mm, výška ložného priestoru: 860 mm, zavesenie: vzduch, veľkosť pneumatiky: 235/75 r 17,5, farba: sivo-čierny, Výbava: ABS, Gooseneck: •Gooseneck with beveled front corners at 45° and rear chamfer approx. 750 mm x 10° •3 pairs of lash rings •30 mm thick hardwood decking Extendable Load Platform: •Extendable load platform with rear chamfer approx. 1,000 mm x 8° •Cut-outs in the outer frame of the load platform for attaching lashing straps •Approx. 48 mm thick hardwood decking, over the axles with chequer plate covering Two-piece Steel Ramps: •One pair of galvanized, two-piece steel ramps with approx. 48 mm thick hardwood covering •Ramps with hydraulically foldable ramp sections, hydraulic lifting system, and hydraulic lateral adjustment •Maximum capacity per pair: approx. 40,000 kg Axles and Tyres: •BPW axles and suspension, 2 rigid axles, 1 trailing steering axle •Technical axle load: 12,000 kg •Electromagnetic reverse lock, activated via reverse gear and manually •Air suspension with lift and lower valve •Axle tools •235/75 R 17.5 3PMSF Braking System: •WABCO braking system according to EU regulations with EBS-E Paintwork: •First-class, durable corrosion protection of the standard shot-blasted welded frame, guaranteed by a 2-component zinc dust primer •High-quality, single-tone 2-component topcoat in MB 7350 Novagrau •Rear section metalized and painted in RAL 9010 Landing Legs: •JOST landing gear with 2-speed gearbox for 24 t lifting capacity (50 t test load). Steel Construction: •Steel construction made from high-strength fine-grained steels •Steel grades: •S355J2+N/S355MC •S690QL/S700MC Electrical System: •Electrical system complying with EU regulations, 24 volt lighting •ASPÖCK-UNIBOX on the front connection board with 24N, 24S & 15-pin sockets Accessories Included: •One spare wheel with holder Hodpfehlz S Nex Anfsnt •One galvanized steel front wall approx. 400 mm high •Yellow-red air couplings on the galvanized front connection board •4 wheel chocks •A holder for a warning beacon at the rear of the trailer •Recess in the rear gooseneck area for ALU approach ramps •Galvanized folding supports under the chamfer of the load platform •Cover plates to bridge the gap between the ramps and the load platform •White reflective tape as per EU regulations on the sides, extension, and rear (red) •Electro-hydraulic unit at the rear, under the load platform •One holder each on the gooseneck and on each ramp, left and right, for warning signs incl. socket •Ramp control valves mounted on the right-hand side of the trailer •On the gooseneck, ALU side and rear boards approx. 2,440 x 400 mm •Rear galvanized plug-in stakes are removable (body length approx. 2,560 mm) •Four warning panels, extendable by approx. 400 mm, each with a position light •3 pairs of WADER container pockets in the platform for a 20ft, 30ft, or 40ft container •6 pairs of stake pockets (100x50 mm) in the outer frame of the load platform •Galvanized extensions, extendable by approx. 230 mm per side •20 x 20 mm square toehold strips every 200 mm on the outer frame of the platform chamfer •Sanded surface finish painted on the chequer plates, king pin, and load platform as anti-slip protection •Load gauge for determination of axle loads, including load diagram •HRM metallization (High Resistance Metallisation) of the outer frame •Complete steel structure shot-blasted, then the defined visible areas metallized with ZINACOR 850 (zinc 85% - aluminium 15%) by hot finish
