Nízkozdvižný príves

MAX TRAILER 300

MAX Trailer 300 NEW | 7.0 m Loading Platform | 16.4 t Payload | Ramps | from €38,600

New vehicle – individually configurable for your specific application.
Compact and robust low-loader trailer designed for the safe transport of machinery, equipment, and vehicles.
Engineered for high payload, easy handling, and cost-effective use in daily operations.

---Highlights---
• Approx. 16,390 kg payload
• 7,000 mm loading platform length
• Rear chamfer for easy ramp access
• Aluminum ramps, manually movable
• Ramp load capacity up to 24,000 kg per pair
• BPW axles with air suspension
• EBS braking system
• Compact dimensions – ideal for construction sites & service applications

---Technical Data---
• Gross weight: 21,000 kg
• Unladen weight approx.: 4,610 kg (±3%)
• Payload approx.: 16,390 kg
Bcedpfx Aeypa Apedpsw
• Loading platform length: 7,000 mm
• Overall width: 2,480 mm
• Loading height at max load: approx. 860 mm
• Coupling heights: 700 / 775 / 850 mm
• Max speed: 80 km/h

---Standard Equipment---
• Loading platform with hardwood floor (approx. 38 mm)
• Tread plate covering over axles
• Lashing points up to LC 5,000 daN and recessed lashing rings in the frame
• Cut-outs in outer frame for lashing straps
• BPW axles, air-suspended, drum brake with lift/lower function
• EBS braking system (2S/2M) with spiral cable
• ASPÖCK NORDIK LED lighting
• TPMS tire pressure monitoring system (ECE R141)

---Included Options / Accessories---
• Drawbar approx. 1,750 mm with 50 mm towing eye
• Galvanized steel front wall approx. 400 mm
• Spare wheel with holder on drawbar
• Mechanical support leg at the front
• Galvanized folding supports under rear chamfer
• European rear reflector plates
• White reflector strips on sides and rear
• Rotating beacon holder at the rear
• Holders for warning panels incl. socket
• Mud flaps with MAX logo
• Additional license plate bracket at rear right
• Manual & documentation on USB stick

Further equipment and individual modifications available at any time – we configure your vehicle exactly according to your requirements.

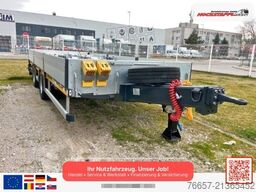

Sample photo. Equipment may vary based on configuration.
