Vyklápací príves

Oehler OL TMK 203

OL TMK 203

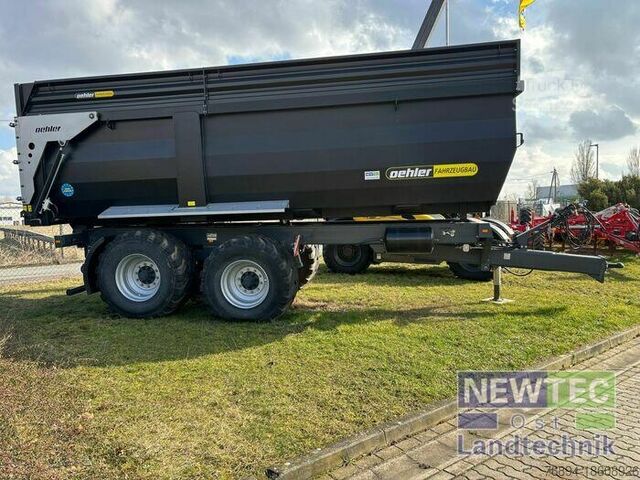

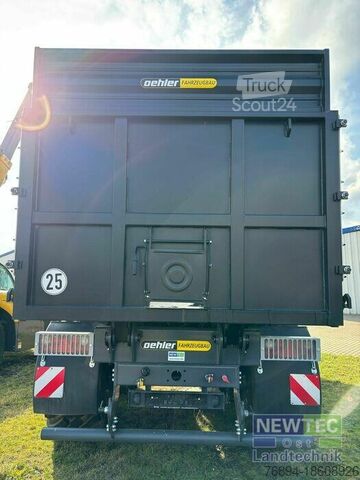

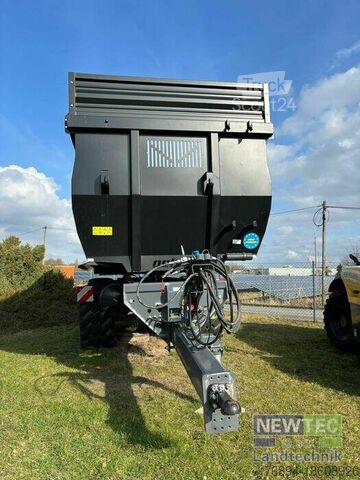

Oehler OL TMK 203 Tandem Dump Trailer
7 m – Air Brakes
– SUMO 20–24 t permissible gross weight
Internal body dimensions: 7000 x 2300 (2240) x 1500 mm,
Gedpfx Aev D R E Toh Nskf
Total length/width: 7,480 x 2,550 mm,
Body height: 1,500 mm,
Platform height: approx. 1,360 mm,
Floor plate: continuous 5 mm, unwelded,
Track width: approx. 1,950 mm,
Max. axle load capacity: 20,000 kg,
5 / 6 tipping cylinder stages,
Cylinder stroke length: 2,500 / 3,150 mm,
Cylinder stages Ø 75-90-105-120-140 mm,
Max. lifting force: 30.7 t,
Max. operating pressure: 200 bar,
Required oil volume: 24.8 l,
Rectangular tube,
Spring-loaded drawbar, body: 4 mm,
2-circuit compressed air brake system, ALB on both axles,
BPW axle for 25/40/60 km/h,
Hydraulic support leg,
12-volt lighting system, rear socket,
2C paint finish, 5/6-stage telescopic tipping cylinder, 2,500 mm stroke,
Hard-chromed piston rod,
Automatic tipping limit,
Wheel chocks
– Registration documents for 40 km/h*
(Mudguards required)
– Body extension 500 mm (TMK 203-330, 7 m)
7,000 x 2,300 (2,360) mm
– Tyres: 650/55 R26.5 180A8 FL630 Ultra
10-hole ET0
– Surcharge for axle combination SA/NL 410x180 2150 track
1st axle steered
BPW trailing steering axle
– Stabilizer bar kit
– Mudguards
– Adjustable underride guard (rear)
– Lamp protection grid Europoint flat
– Ball coupling K80 110x100
Max. 3 t support load
– Special black body paint (RAL 9005) STT 130
