Trojsmerný sklápačský príves

Sigg 35 K 38 - T1H Gitter Dreiseitenkipper

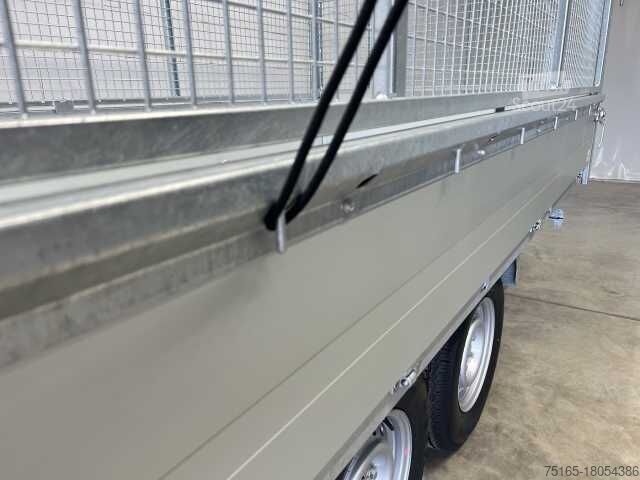

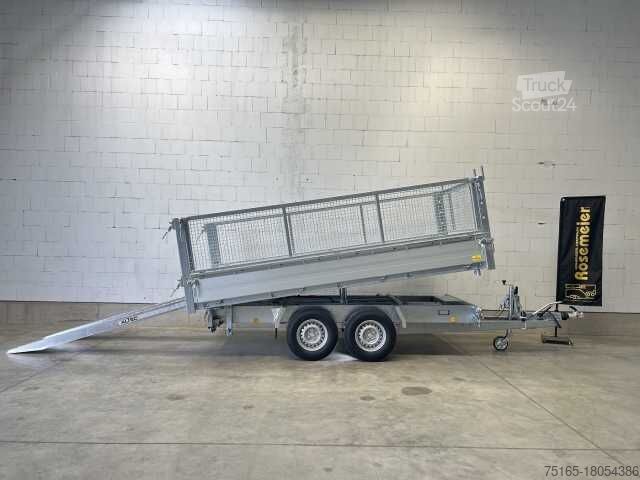

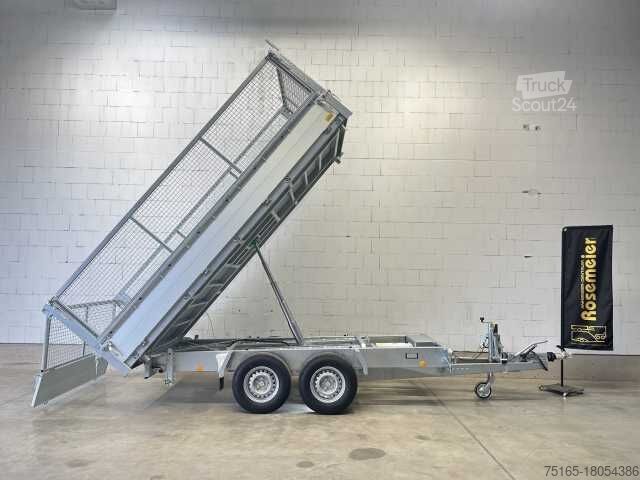

9930745 Three-way tipper with electric pump – the power package! Manufacturer: SIGG Fahrzeugbau GmbH, Model: 35 K 38 - T1H Mesh, Permissible total weight: 3500 kg, Unladen weight: approx. 1270 kg, Payload: approx. 2230 kg (payload may vary depending on equipment and configuration), Internal dimensions: 3740 x 1720 x 1050 mm (L x W x H), Platform height: 790 mm, Mesh side extension: 700 mm, Tapered tipping body (rear 2 cm wider than front) allows loads to slide off significantly faster and with less effort. Sturdy one-piece steel sheet platform, fully hot-dip galvanized by submersion. The entire loading area is free of protruding screws or rivets that could hinder loading/unloading. 5-stage tipping cylinder with 8 t lifting capacity. Sturdy aluminum loading ramps that can slide underneath – 2850 kg load capacity per pair; dimensions: 2560 x 280 mm (L x W). Robust support legs, bulkhead rack for securing tools, small equipment, or long materials (with various lashing options). Aluminum drop sides made from mammoth profile with 12 internal cross struts – as robust as steel, as light as aluminum. Electrohydraulic pump with battery and manual emergency pump with double stroke. External charging interface for CTEK charger, 10 foldable heavy-duty lashing eyes – when not in use, they retract flush into the loading edge, creating a level, unobstructed surface. Lashing rails mounted left and right on the sideboards – combining load securing and impact protection. Secure small parts using the internal and external perforations directly on the lashing rail – also provides heavy-duty impact protection for the sideboards. Integrated net hooks on the lashing rails; additional net hooks front and rear on the drop sides. Internal holes in the lashing rails can be used for a locking bar to help with positive-fit load securing. Lashing rails on the front and rear faces with cleaning openings. Tyres: 195 R14 C. Alko axle with extended axle carrier (700 mm instead of 250 mm long) for more contact area, stability, and safety. Long-life brake cables with additional plastic coating. Pendulum tailgate. Metal mudguards. Robust pendulum catches on the rear drop side. Narrow hinge spacing on the drop sides prevents warping from internal pressure. Heavy-duty angle lever catches with push-button safety feature. Additional options and accessories for this trailer: shock absorbers including 100 km/h certificate, 350 mm or 700 mm aluminum side extension, load securing nets in various designs, locking bars, spare wheel with holder, anti-theft device. For a tailored finance solution, just contact us! Over 1,500 trailers in stock at Trailer Center Rosemeier. Have a look around – we’ll be happy to advise you. Pictures may show accessories not included as standard. Due to continuous development, images and technical data may differ slightly. Errors and changes excepted!
